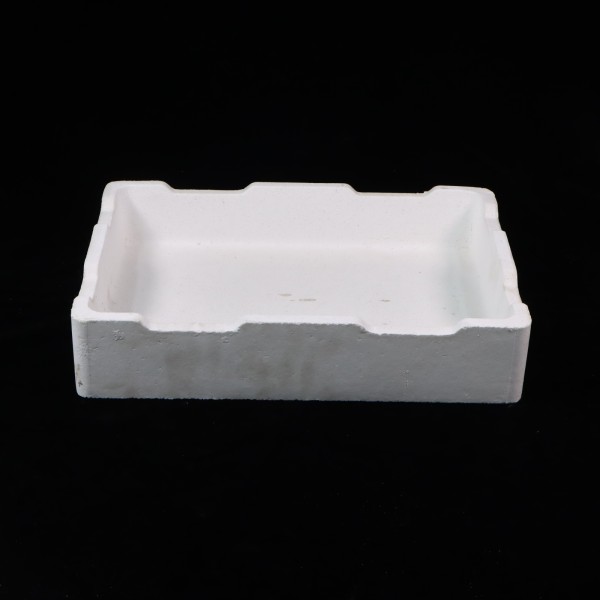

Product Overview
Changsha ZCXC New Materials manufactures high-performance mullite corundum saggars (also called corundum mullite refractory saggers) — premium kiln containers engineered for high-temperature sintering, calcination and firing processes up to 1750°C.
Formulated with a synergistic composite of α-alumina corundum and mullite (3Al₂O₃·2SiO₂), our saggars balance high structural strength, outstanding thermal shock resistance and ultra-low metal impurity release, making them the ideal consumable for lithium battery cathode materials, advanced ceramics and specialty glass production lines. We support full customization of size, wall thickness and material formula to match your roller kiln, tunnel kiln and pusher kiln parameters.
Key Performance Advantages
-
Superior High-Temperature Stability
Max continuous service temperature up to 1650°C, short-term peak temperature resistance up to 1750°C. No softening, deformation or creep under long-term high-temperature loading, suitable for multi-layer stacked sintering production.
-
Excellent Thermal Shock Resistance
The mullite phase brings low thermal expansion coefficient, maintaining structural integrity after rapid heating and cooling cycles, effectively reducing cracking rate and extending service life under frequent thermal cycling conditions.
-
Ultra-Low Metal Contamination
High-purity raw material formula with dense sintered microstructure, minimal elemental precipitation during high-temperature reaction. It avoids pollution to cathode active materials, ensures stable batch consistency of NCM811, NCA, LCO and other high-value powders.
-
High Mechanical Strength
Cold crushing strength ≥ 70 MPa, high load-bearing capacity. It supports dense stacking in kilns, improves single-kiln production capacity, and reduces breakage rate during transportation and automatic loading and unloading.
-
Long Service Life & Cost Efficiency
Optimized grain gradation and sintering process, with corrosion resistance to alkali lithium salts. The cycle life is significantly better than ordinary mullite saggars, reducing the frequency of consumable replacement and total production cost.
Technical Specifications
| Parameter |
Standard Value |
Customizable Range |
| Main Composition |
Al₂O₃ 70%-85%, SiO₂ 10%-20% |
Adjusted by formula per working condition |
| Max Service Temperature |
1650°C (continuous) / 1750°C (short-term) |
High-temperature formula upgrade available |
| Bulk Density |
2.0–2.3 g/cm³ |
1.9–2.5 g/cm³ |
| Apparent Porosity |
18%–25% |
Adjustable for density requirements |
| Cold Crushing Strength |
≥ 70 MPa |
High-strength formula ≥ 90 MPa |
| Thermal Shock Resistance (1100°C→room temp.) |
≥ 15 cycles without cracking |
Enhanced formula ≥ 25 cycles |
| Standard Shape |
Rectangular box with lid |
Square, round, boat-shaped, special-shaped |
| Standard Size |
320×320×100mm, 360×360×120mm, 400×400×150mm |
Fully customized per customer drawings |
Typical Application Scenarios
-
Lithium Battery Industry:
High-temperature sintering/calcination of NCM/NCA high-nickel ternary cathode, LCO lithium cobalt oxide, LFP lithium iron phosphate and LMO lithium manganate cathode materials, supporting roller kilns and tunnel kilns for mass production.
-
Advanced Ceramics:
Firing of structural ceramics, electronic ceramics, magnetic materials and cemented carbide powders.
-
Specialty Glass & Refractories:
Melting, refining and heat treatment of optical glass, technical glass and high-purity refractory raw materials.
-
Powder Metallurgy:
Sintering of rare earth materials, ceramic metal composite powders and other high-purity powders.
Customization Capabilities
- Custom size, wall thickness, internal structure and lid design according to drawings
- Formula adjustment for specific working conditions (high temperature resistance, alkali corrosion resistance, high strength type, etc.)
- Matching design for different kiln types (roller kiln, pusher kiln, box furnace)
- Surface coating treatment to further improve corrosion resistance and service life
